How To: Create a server with Windows LDAP authentication in Titan Nextgen

How To: Create a server with Windows LDAP authentication in Titan Nextgen


Titan Nextgen Builds 1.x and above.

Question

How can I configure a server to utilize LDAP as the authentication server in Titan Nextgen?

Reasoning

I would like to be able to integrate my current database of users so I can give them access to the Titan server to be able to send and receive files.

Answer

You have the option in Titan Nextgen to configure a server to use LDAP as the authentication server.


Steps

  1. Navigate to the “User Auth” tab at the server level.

Graphical user interface, applicationDescription automatically generated

  1. Click on the “+” icon on the far right had side.

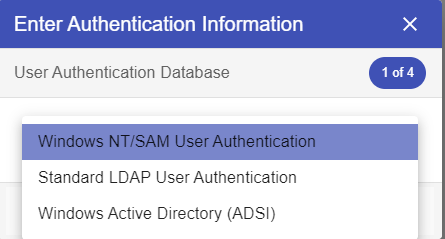

  2. Click on the drop-down menu and select “Standard LDAP User Authentication” and click on Next.

Graphical user interface, text, application, emailDescription automatically generated

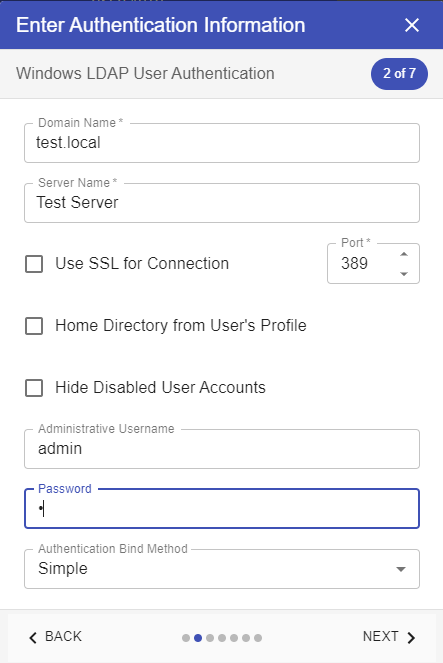

  1. Enter all the required information and click on Next.

Graphical user interface, text, application, emailDescription automatically generated

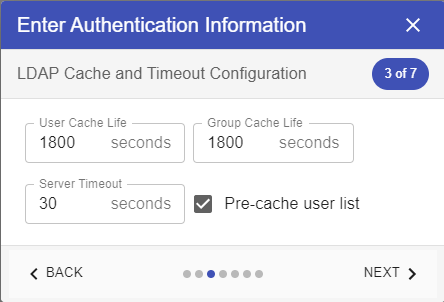

  1. Configure your cache and timeout settings and click on Next.

Graphical user interface, applicationDescription automatically generated

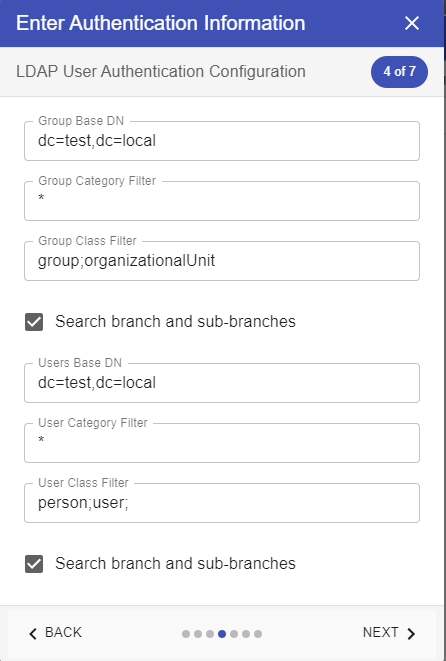

  1. Enter the Group Base DN and filters needed.

Graphical user interface, text, application, emailDescription automatically generated

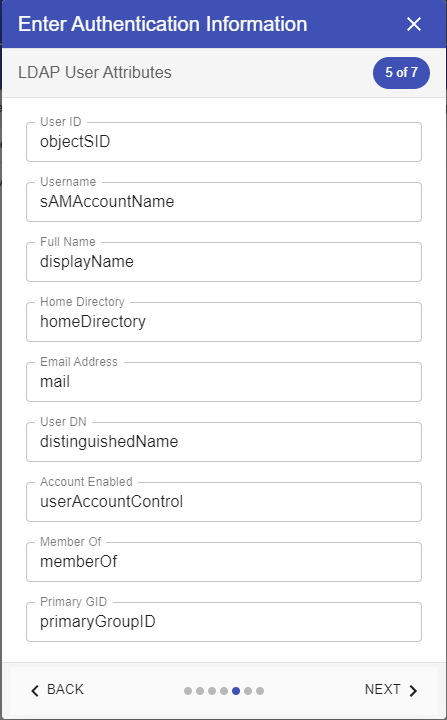

  1. Enter the LDAP User attributes.

Graphical user interface, text, applicationDescription automatically generated

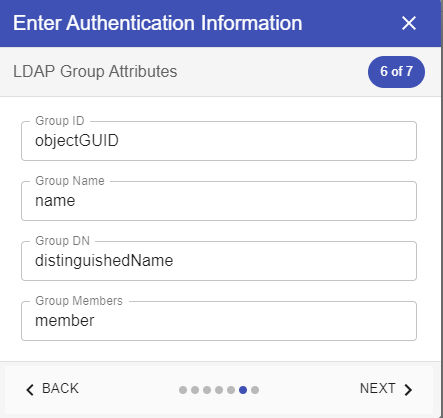

  1. Enter LDAP group attributes.

Graphical user interface, applicationDescription automatically generated

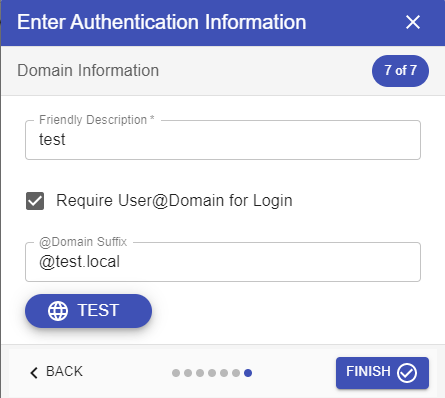

  1. Provide a name and domain suffix. Then click “Test” to ensure communication works and then Finish.

Graphical user interface, text, application, chat or text messageDescription automatically generated
