Question

How can I authenticate users using LDAP?

Reasoning

AD LDAP is a robust and flexible authentication mechanism that offers centralized user management, enhanced security, scalability, and interoperability, which is why it is the preferred solution for authentication in many enterprise environments.

Pre-Requisite
Titan SFTP/MFT
Windows Server Active Directory

Answer

These are the steps on how to do it:

Steps

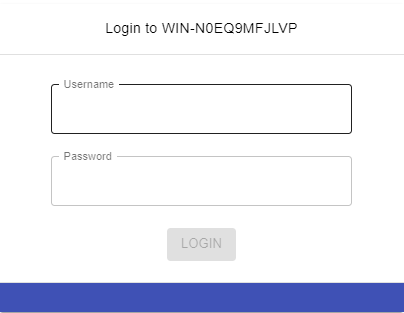

  1. Login Open and log in to Titan Admin Web UI.

A screenshot of a login screenDescription automatically generated

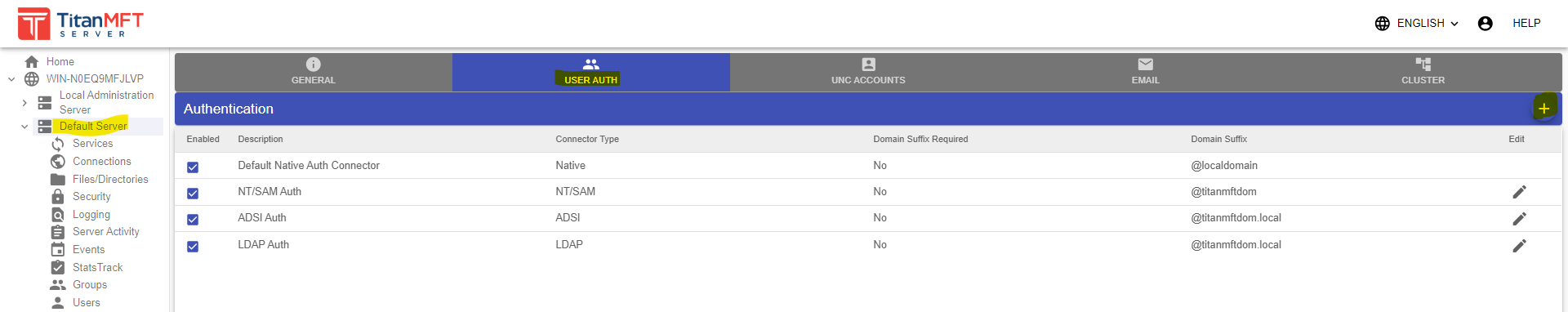

  1. Navigate the server, click user Auth then click Add.

A screenshot of a computerDescription automatically generated

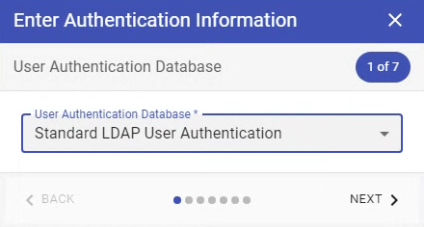

  1. Choose ‘Standard LDAP User Authentication’ on the dropdown options then Next.

A screenshot of a login boxDescription automatically generated

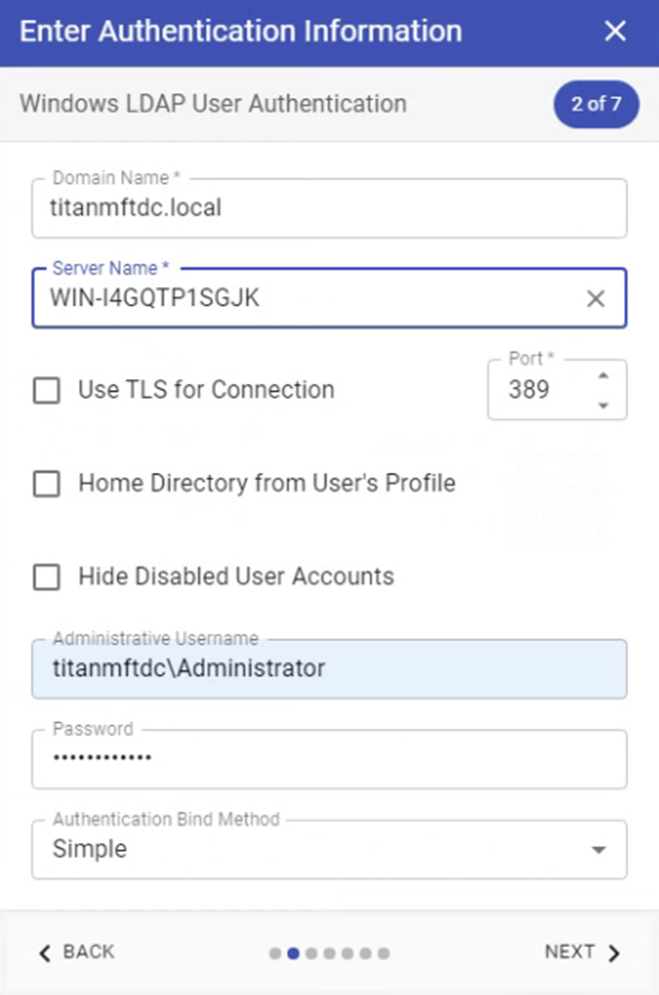

  1. Fill up the following information (Domain Name, Server Name, Administrative Username, and Password) then Next.

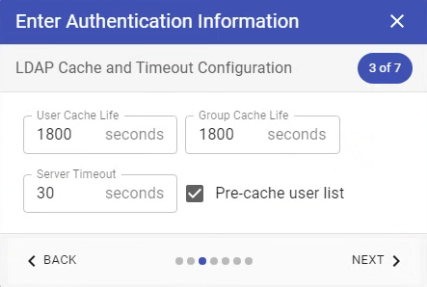

  1. Edit if needed. For default, click next.

A screenshot of a computerDescription automatically generated


  1. Edit if needed. For default, click Next.

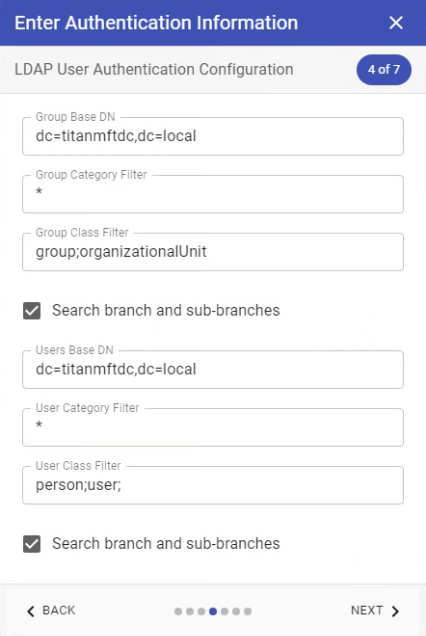

A screenshot of a search boxDescription automatically generated

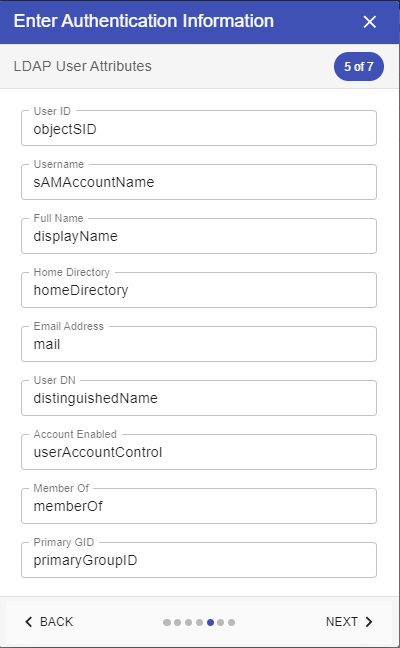

  1. Edit if needed. For default, click Next.

A screenshot of a login formDescription automatically generated

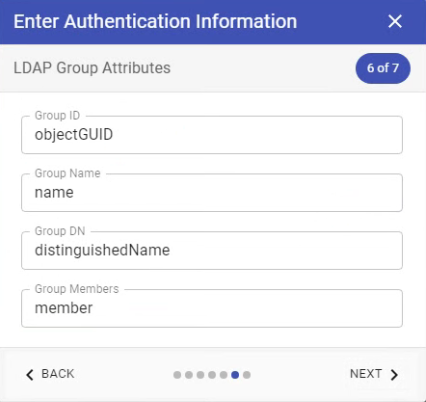

  1. Edit if needed. For default, click Next

A screenshot of a login formDescription automatically generated

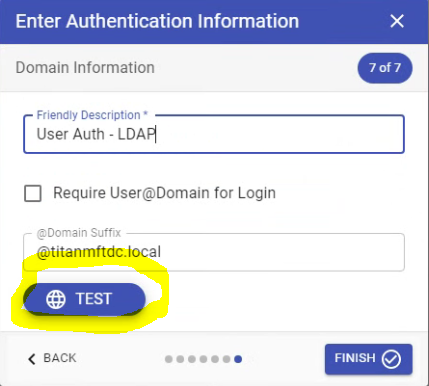

  1. Fill the ‘Friendly Description’ then Test.

A screenshot of a computerDescription automatically generated

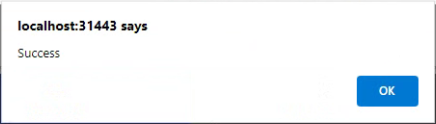

Note: It should show this message:

A white background with black borderDescription automatically generated

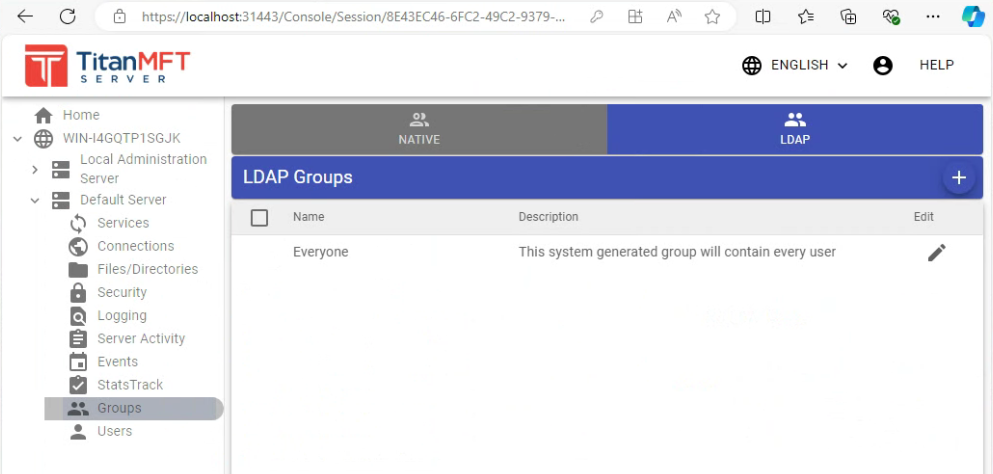

  1. Go to Groups, click LDAP Section, then click Add.

A screenshot of a computerDescription automatically generated

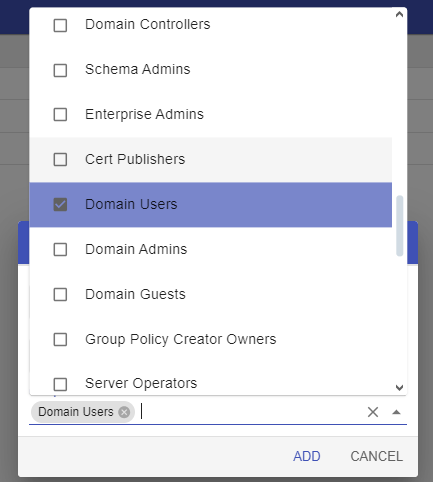

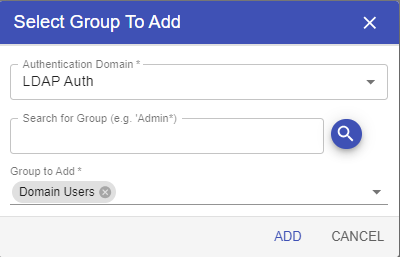

  1. Click Search Group, select the group, then click Add.

A screenshot of a computerDescription automatically generated


Here is the example of the user that will be add.

A screenshot of a computerDescription automatically generated

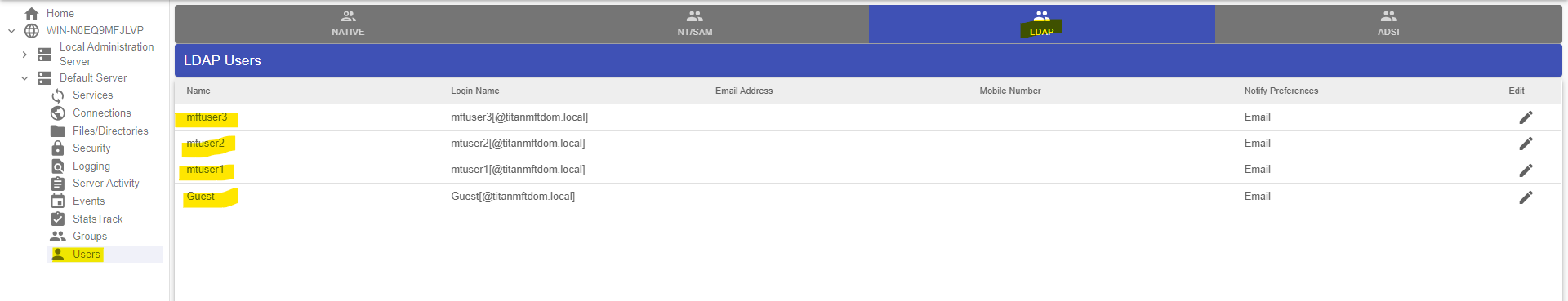

Note: It should show the LDAP Users in the LDAP Group

A screen shot of a computerDescription automatically generated
