How To: Create IP Access Rules in Titan Nextgen

How To: Create IP Access Rules in Titan Nextgen



Titan Nextgen Builds 1.x

Question

How do I create rules for allowing or restricting traffic based on IP address.

Reasoning

I would like to be able to put a restriction in place due to security reasons, we can either allow or deny access from a certain IP address or IP address range.

Answer

You have the option in Titan Nextgen to create IP access rules.


Steps

  1. Navigate to Security and click on IP access tab.

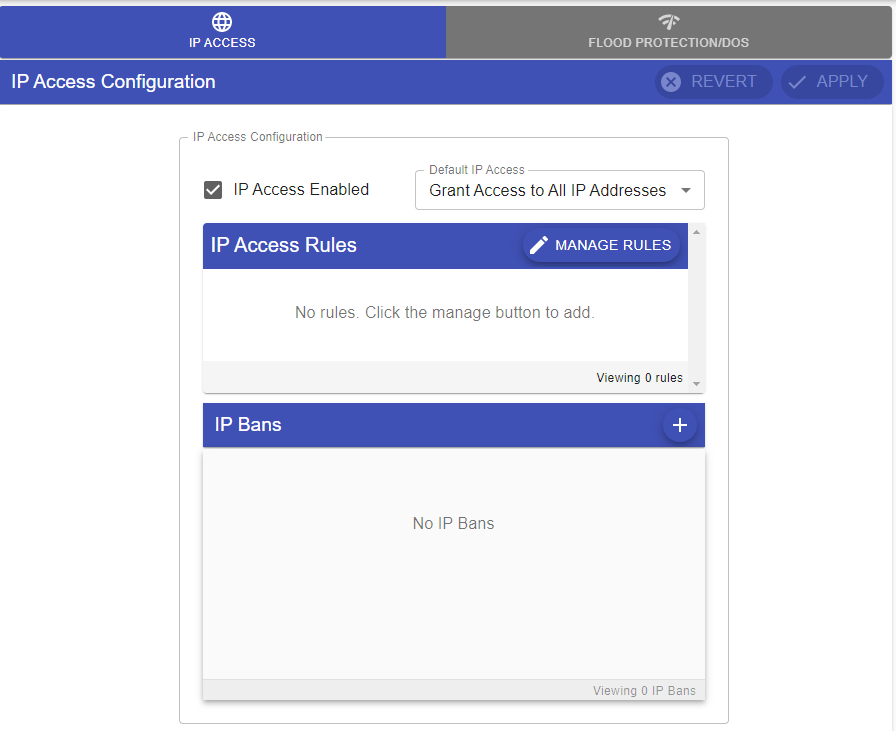

Graphical user interface, application, TeamsDescription automatically generated

  1. Enable the option “IP Access Enabled”.
  2. Click on Manage Rules.

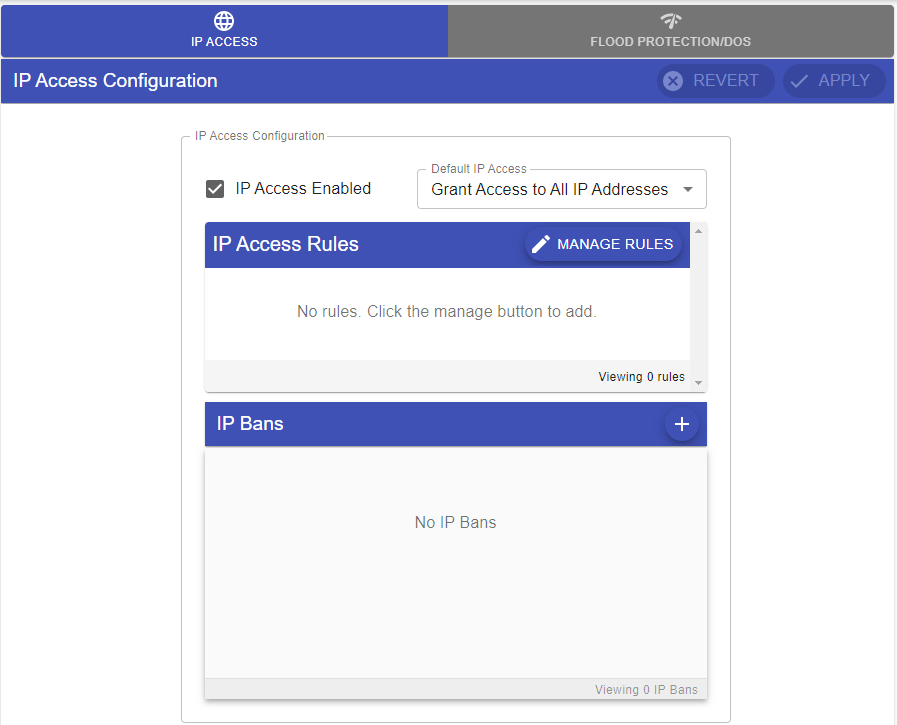

Graphical user interface, application, TeamsDescription automatically generated

  1. Click on the plus icon on the top right corner.

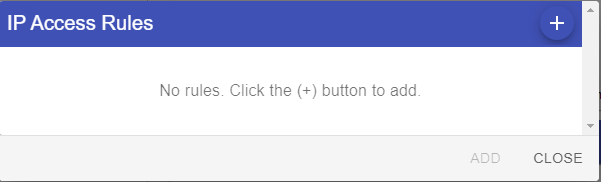

Graphical user interface, text, applicationDescription automatically generated

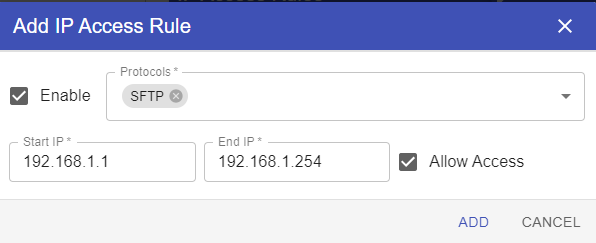

  1. Configure the IP access rule settings:
  1. Protocols dropdown: Select which protocol this rule will apply to.
  2. Enable option to enable this access rule.
  3. Input the start and end IP address range.
  4. Allow or deny access by enabling or disabling the “Allow Access” checkbox

Graphical user interface, applicationDescription automatically generated

  1. Click on Add.
