How To: Create a server with AD authentication in Titan

How To: Create a server with AD authentication in Titan


Titan SFTP Server and Titan MFT Server.

Question

How can I configure a server to utilize windows active directory as the authentication server in Titan?

Reasoning

I would like to be able to integrate my current AD users so I can give them access to the Titan server to be able to send and receive files.

Answer

You have the option in Titan to configure a server to use windows active directory as the authentication server.


Steps

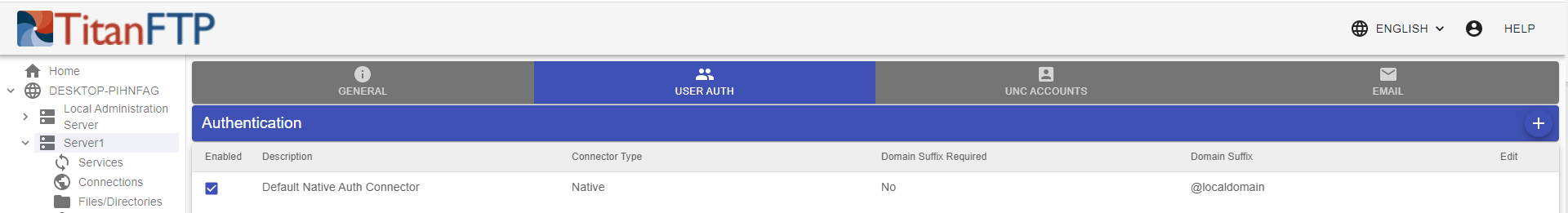

  1. Navigate to the “User Auth” tab at the server level.

Graphical user interface, applicationDescription automatically generated

  1. Click on the “+” icon on the far right had side.

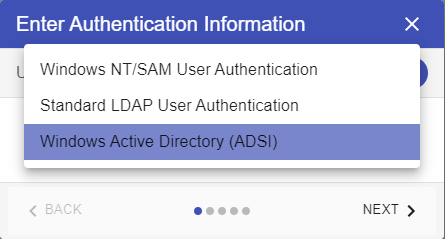

  2. Click on the drop down menu and select “Windows Active Directory (ADSI)” and click on Next.

Graphical user interface, applicationDescription automatically generated

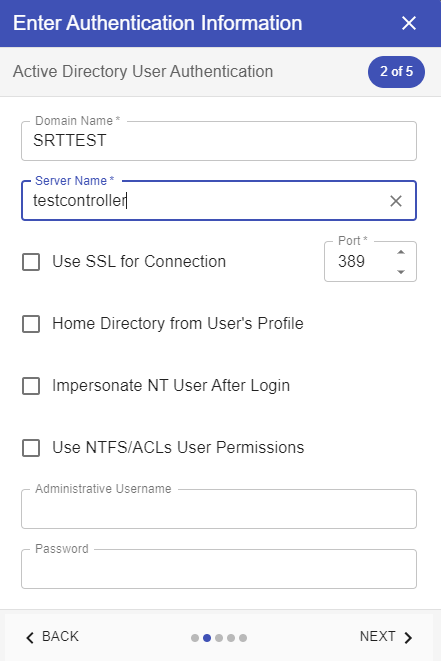

  1. Enter all the required information and click on Next.

Graphical user interface, text, application, emailDescription automatically generated

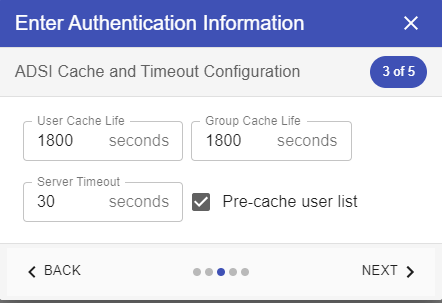

  1. Configure your cache and timeout settings and click on Next.

Graphical user interface, text, applicationDescription automatically generated

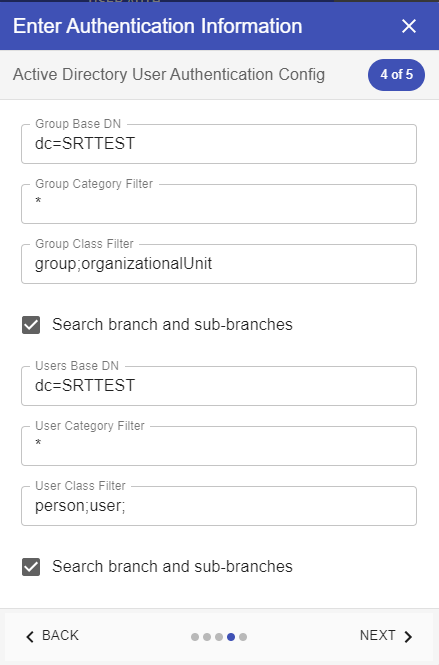

  1. Input any advanced query settings needed and click on Next.

Graphical user interface, text, application, emailDescription automatically generated

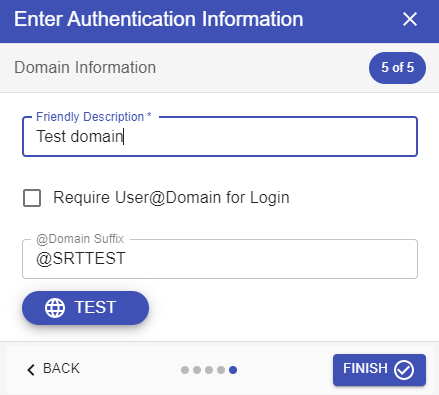

  1. Enter the final domain information. Click on “Test” button to confirm it is working correctly and then click on Finish.

Graphical user interface, text, application, chat or text messageDescription automatically generated

            8. Once complete, please navigate to Groups, click on the "+" icon, search for the AD group you would like to add to Titan and add it
            9. Navigate to the ADSI tab of the Users tree and confirm your users are present
