How To: Harden SFTP settings in Titan Nextgen

How To: Harden SFTP settings in Titan Nextgen


Titan Nextgen Builds 2.x and above.

Question

How can I ensure my SFTP settings which include Ciphers/MACs/Kexes are as secure as possible?

Reasoning

I would like to minimize the risk of having a security issue in my organization by configuring SFTP in Titan Nextgen to have the recommended settings.

Answer

You have the option to enable/disable ciphers/macs/kexes to ensure you have the most secure setting on your environment.

Pre-Requisites

  1. Have a server instance created within Titan Nextgen and SFTP enabled.



Steps

  1. Login to the admin portal
  2. Navigate to the server instance in question.

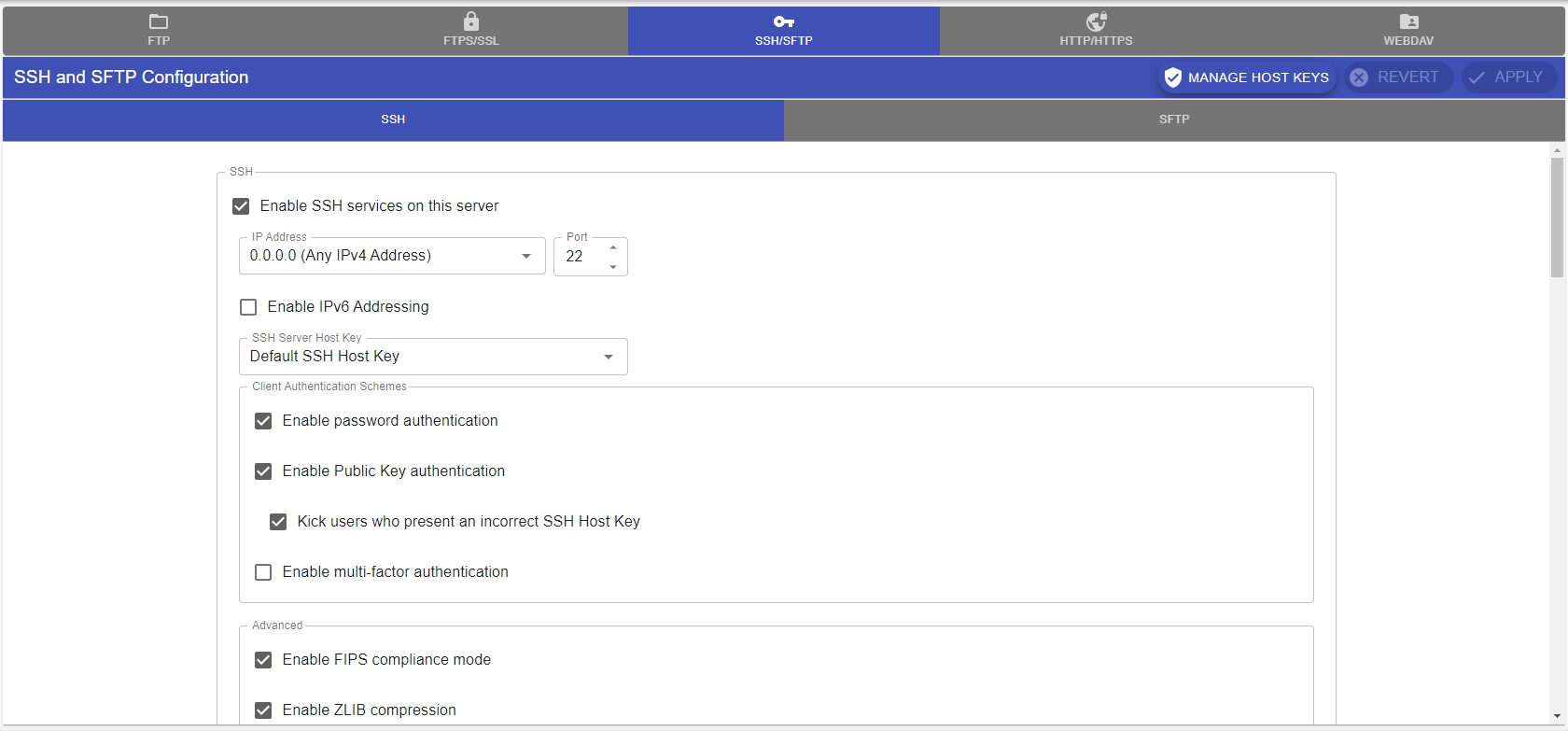

  3. Go to the Services section and click on the SSH/SFTP tab.

A screenshot of a computerDescription automatically generated

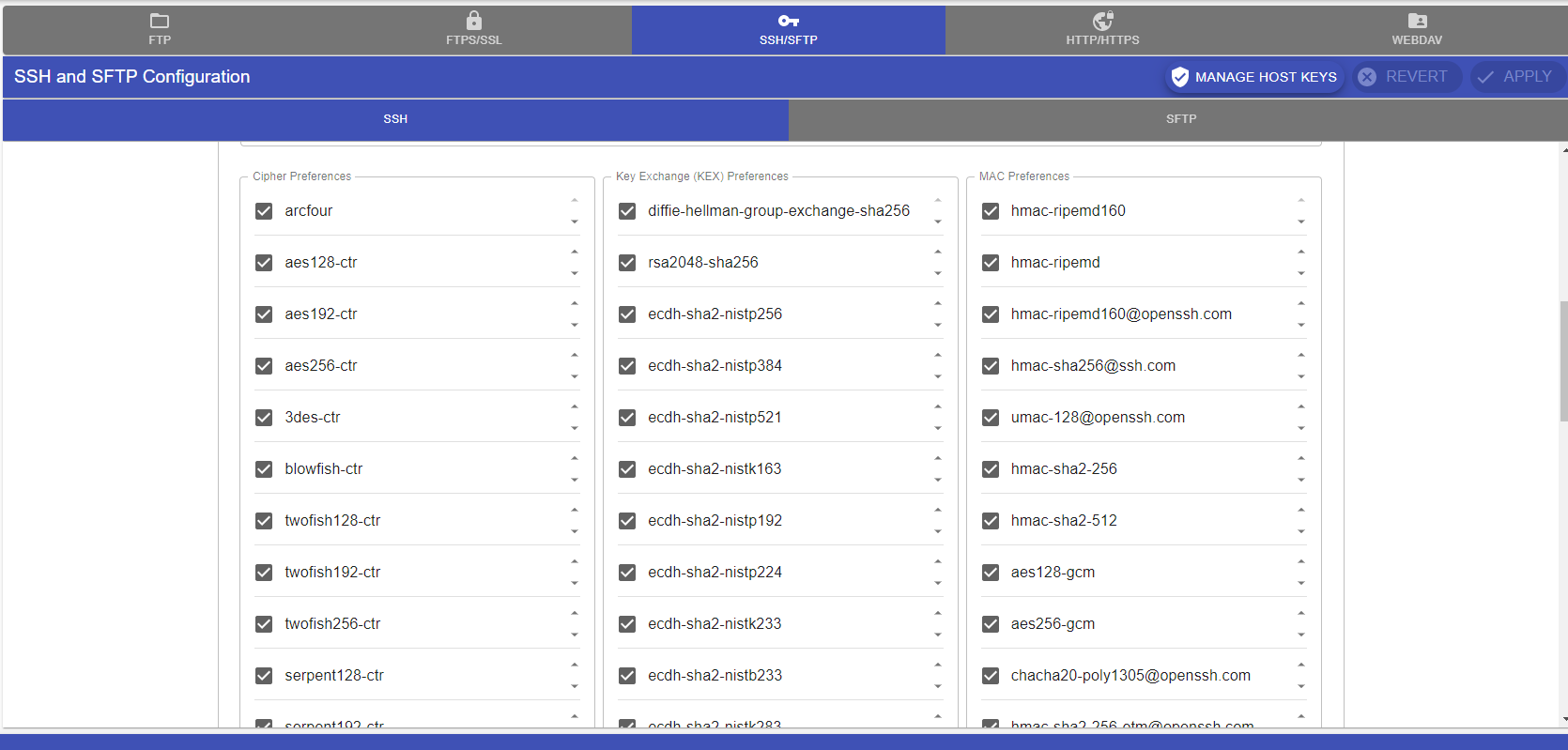

  1. Scroll down to the “Cipher Preferences”, “Key Exchange (Kex) Preference” and “MAC Preferences”.

A screenshot of a computerDescription automatically generated

  1. Apply the recommended settings as seen in the table below:


Ciphers

MACs

KEXes

AES256-CTR

AES256-gcm

ECDH-SHA2-Curve25519

AES192-CTR

AES128-gcm

Curve25519-SHA256@libssh.org

Twofish256-CTR

Chacha20-Poly1305@openssh.com

Curve448-SHA512@libssh.org

Twofish192-CTR

HMAC-SHA2-512-etm@openssh.com

Diffie-Hellman-Group15-SHA512

AES128-CTR

HMAC-SHA2-256-etm@openssh.com

Diffie-Hellman-Group16-SHA512

Twofish128-CTR


Diffie-Hellman-Group17-SHA512
AES256-gcm@openssh.com

Diffie-Hellman-Group18-SHA512
AES128-gcm@openssh.com


AES256-gcm




AES128-gcm






  1. Enable the recommended settings from above and disable everything else by clicking on the checkbox next to each algorithm
  2. When done, click on apply.
