How To: Create a CSR in Titan and Update TLS Certificate

How To: Create a CSR in Titan and Update TLS Certificate



Titan SFTP Server and Titan MFT Server.

Question

How do I create a CSR in Titan and update the certificate?

Reasoning

I would like to be able to create a CSR in Titan so I can get it signed by my CA for secure FTPS and HTTPS connections.

Answer

You have the option in Titan  to create a CSR.


Steps

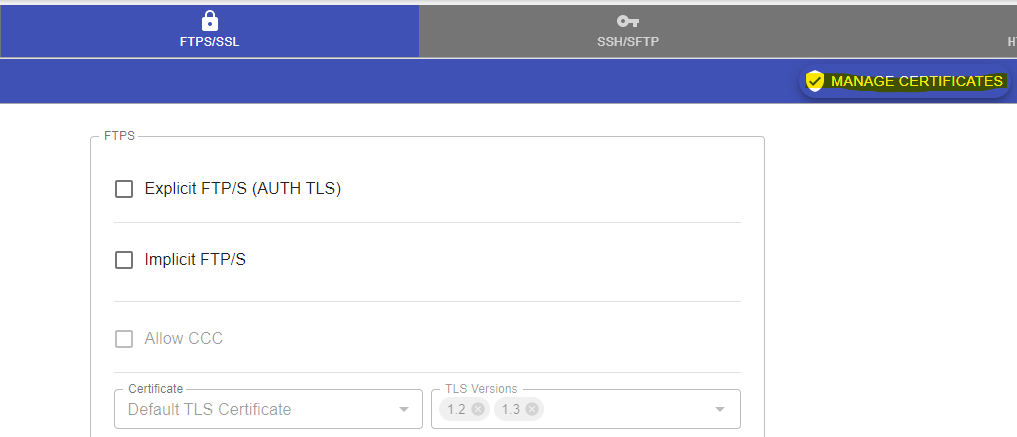

  1. Navigate to the FTPS or HTTPS tab under services and click on “Manage Certificates”.

Graphical user interface, applicationDescription automatically generated

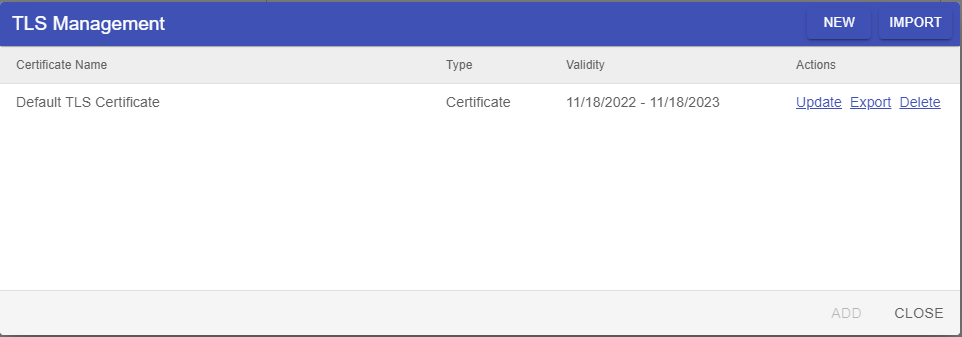

  1. Click on “New” at the top right hand corner.

Graphical user interface, text, applicationDescription automatically generated

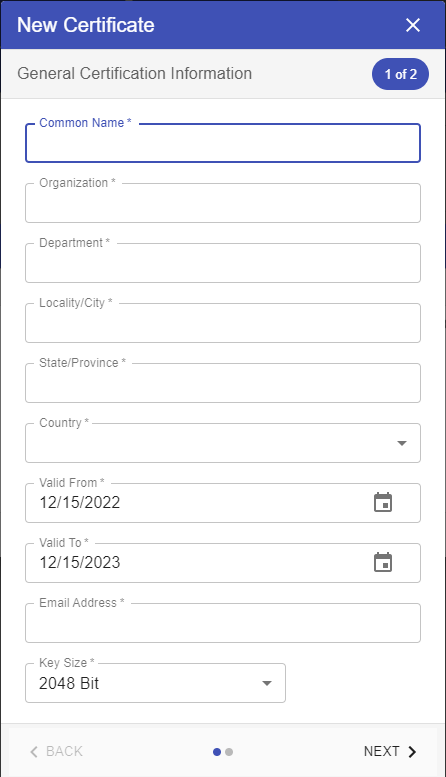

  1. Fill in all of the required fields and click on Next.

Graphical user interface, text, applicationDescription automatically generated

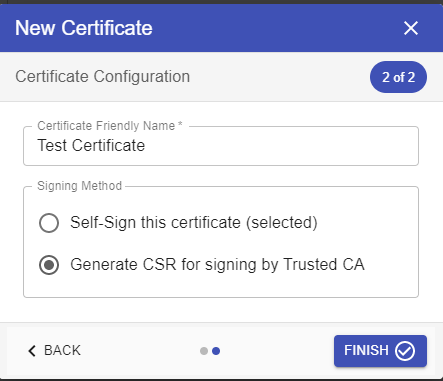

  1. Give your certificate a name and select “Generate CSR for signing by Trusted CA”.

Graphical user interface, text, application, emailDescription automatically generated

  1. Click on Finish.

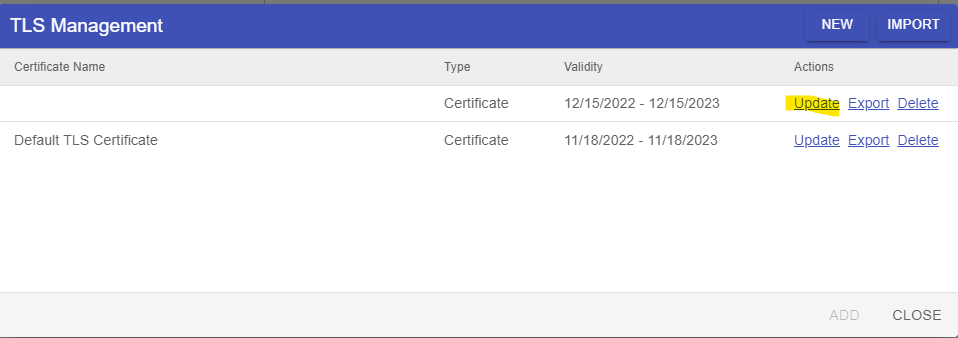

  2. When you have the signed certificate, navigate to “Manage Certificates” and click on “Update” on the existing CSR you created above.

Graphical user interface, applicationDescription automatically generated

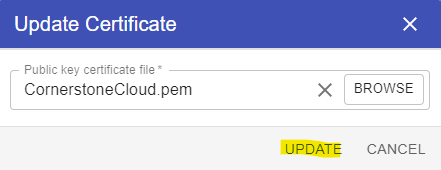

  1. Browse for the file (.pem, .pfx, .crt) provided by your CA and click on Update.

Graphical user interface, text, application, emailDescription automatically generated

  1. Certificate is now updated so you can select it from the certificate dropdown to apply.
